RS232 Interface Card for AM3430

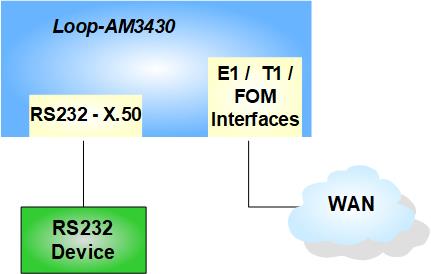

The 4RS232Sa interface card for Loop-AM3430 has 4 interface ports. The 4 RJ48 connectors are available in Synchronous. The max data rate for each port is 64 Kbps.

In X.50 sync mode, the data rate for each of the 4 synchronous ports can be up to 64 Kb/s. In Through-Clock mode, the 4 synchronous ports, each up to 38.4 Kb/s.
The 4RS232Sa interface card uses the multiplexing format defined in ITU-T X.50 Div.2 for rates below 64 Kbps. For 64 Kbps transport, standard RS232 format is used.

Features
