H3304RA High Density G.SHDSL.bis Rack Card

Description

The Loop-H3304RA G.SHDSL.bis plug-in card provides high-speed digital transport over wire pairs by using 16-TCPAM, 32-TCPAM technology for Ethernet and E1 point to point and point to multipoint applications. H3304RA supports 2 fast Ethernet ports on the main card and optional 4 E1 ports over 1-pair/2-pair DSL. A choice of line rates is available with the lower line rates applicable to the longer reaches. The distance that this technology can span without repeaters is dependent on the data rate. The H3304RA plug-in card can work with the H3310 remote unit.

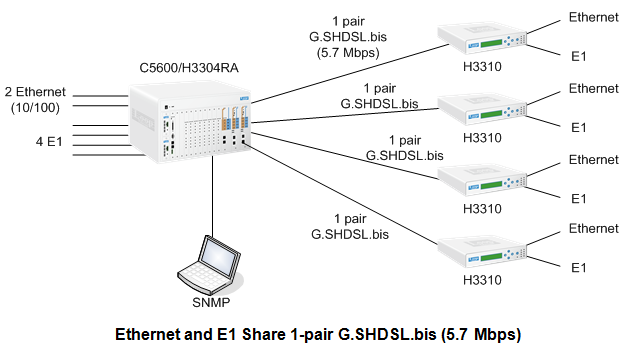

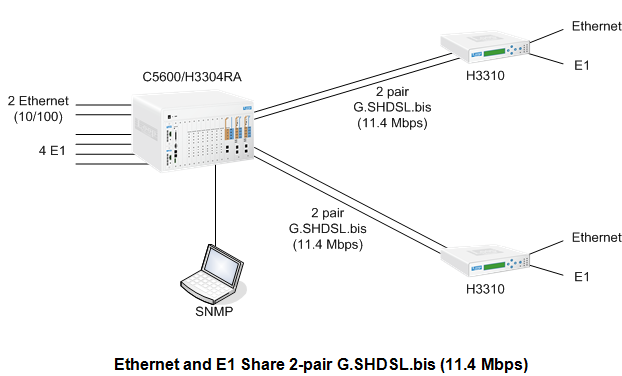

For WAN ports, the H3304RA has four G.SHDSL/G.SHDSL.bis lines which can be grouped into different combinations.  For example, combinations can be 4 ports of 1-pair line, or 2 ports of the 2-pair line, or 1+1 protection.  For tributary ports, the H3340RA provides 2 fast Ethernet ports and optional 4-port E1 tributary cards.
The rack card is intended to be plugged into the Loop-C5600 multi-services shelf for use in central offices. The H3304RA supports configuration, diagnostics, and fault isolation by using a local terminal, remote Telnet or SNMP management via the controller of the C5600 shelf.
