Description

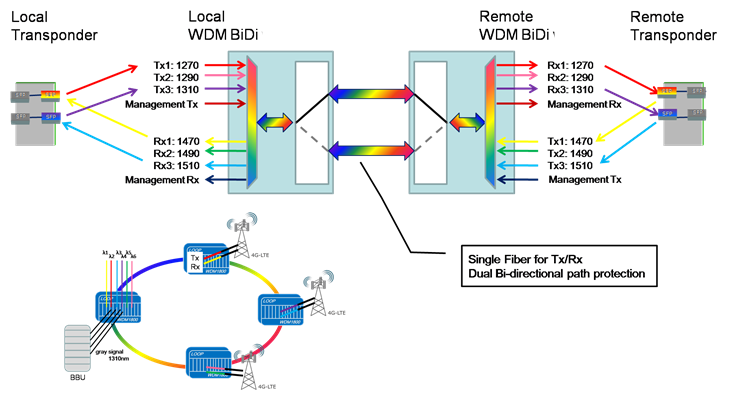

Bi-directional wavelength Mux/Demux module allows multiple optical signals at different wavelengths to pass through a single optical fiber strand. The product is designed to integrate conveniently with Loop-WDM1800. It is a highly flexible multiplexer and supports from 8 to 16* channels in CWDM or DWDM technology. CWDM and DWDM technology expands network bandwidth capacity without the cost of expanding the fiber cable infrastructure.
The Mux/Demux module uses advanced optical grating components to combine and separate the wavelengths. The CWDM Mux/Demux module is available from 4 to 8* ports with dual path channels and a bypass band. And the optical insertion loss is lower than 2.2 dB. Applied with Loop-WDM1800, the module is capable to support local control and diagnostics by using a VT-100 terminal connected to the console port, and Ethernet and SFP ports for Web, Telnet, SSH, and SNMP v1/v3 management as well.
- Support CWDM or DWDM technology
- Available in 8 to 16* channels Bi-directional Mux/Demux
- Flexibility through pluggable optics
- Low optical insertion loss
- High stability and reliability
*Future Option
