Description
Loop Telecom's OCU DP plug-card is an interface card designed for the Loop-V4200 and Loop-AM3440-D series multiplexer. When used within the devices, this card combines the OCU DP function with a CSU/DSU.
The Loop OCU DP card is designed to provide full OCU DP operation for office applications and can be used to extend 64K DDS, switched 56K, or Frame Relay circuits up to 18,000 feet from the multiplexer.

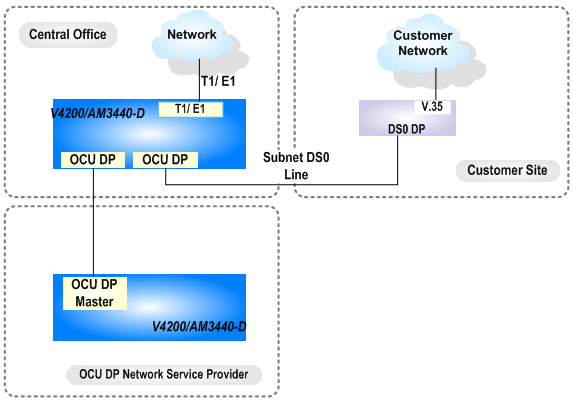

For CPE applications, the Dual OCU DP module allows network administrators to cut network access charges and continue to support traditional DDS/SW56 requirements. By reusing existing CPE products such as the DSU III AR, the OCU DP module can extend switched 56 circuits to a conference room to support video-conferencing. The module can also be used to extend a 56k Frame Relay circuit to FSU located in a computer room. The flexibility of the Loop-V4200 and Loop-AM3440-D series multiplexer family allows multiple OCU DP module operations with any of the existing interface modules for voice, data, or routing.
- RJ45 & 4-wire non-loaded balanced loop connector
- Supports data transmission sub-rates up to 64kbps
- DDS or Switched 56
- Configuration software field upgradeable
- Automatic line equalization
- Can be multiplexed with other ports
- Easy configuration from SNMP, Telnet, VT-100 terminal, or Loop-V4200-9 front panel
