Power Utilities

Upgrading to a STM-4 Backbone

Situation

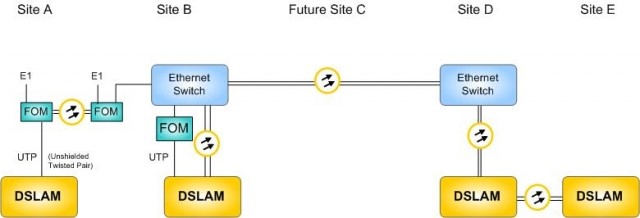

A customer in Southeast Asia wanted to replace an existing Ethernet/E1 leased line solution with an Ethernet over STM-4 solution but was concerned about the capital costs involved.

Solution

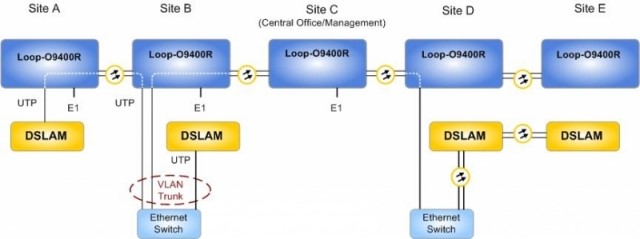

We deployed Loop-O9400R rack devices at each site to replace the FOMs and reconfigure the DSLAMs so the customer could switch to a STM-4 backbone. The O9400R supports STM-1/4/16 (OC-3/12/48), multiple ring protection with SNCP (Subnetwork Connection Protection), and more features.

Loop’s O9400R devices provided a reliable Ethernet over STM-4 solution at an affordable price without sacrificing quality. The high capacity of the O9400R system also provided room for the customer to expand their network in the future. For combining many low speed interfaces like FXS, FXO, and E&M, the Loop O9400R provides a perfect SDH backhaul for power utilities and oil & gas companies.



Carrier Backhaul

As the number of internet access devices such as smart phones and laptops continues to grow, their desire for larger amounts of data at higher speeds strains current telecommunications networks. Loop Telecom devices help carriers across the world as they expand and upgrade their network. This includes our SDH/SONET family of devices such as th...

Public Transportation

In many ways, a telecommunication network often mirrors a physical transportation network -- thus the old phrase "information superhighway" used to refer to the internet. However, physical transportation networks such as roadways and railways often require their own separate communication network to relay alarm and status information to human ...

Oil, Gas, & Petroleum

As large companies grow, they increasingly need more dedicated internal infrastructure to communicate with their machines across large factories and between remote sites.Loop Telecom products such as the IP6820 are suited for these difficult environments -- it includes several GbE ports for high speed data transfer between data-hungry devices,...

Management

Every network needs to be managed. All Loop devices support SNMP and SSH into a remote terminal. Loop-iNET and LoopView allow you to change settings through a GUI format, and also switch easily between multiple devices. For complex network features such as circuit provisioning, Loop-iNMS fulfills customer needs. Loop products support both inba...
