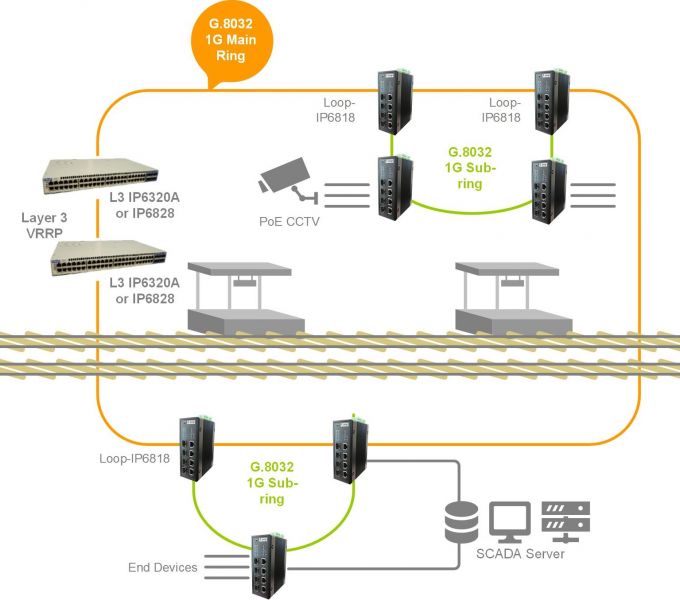

.png "6818")

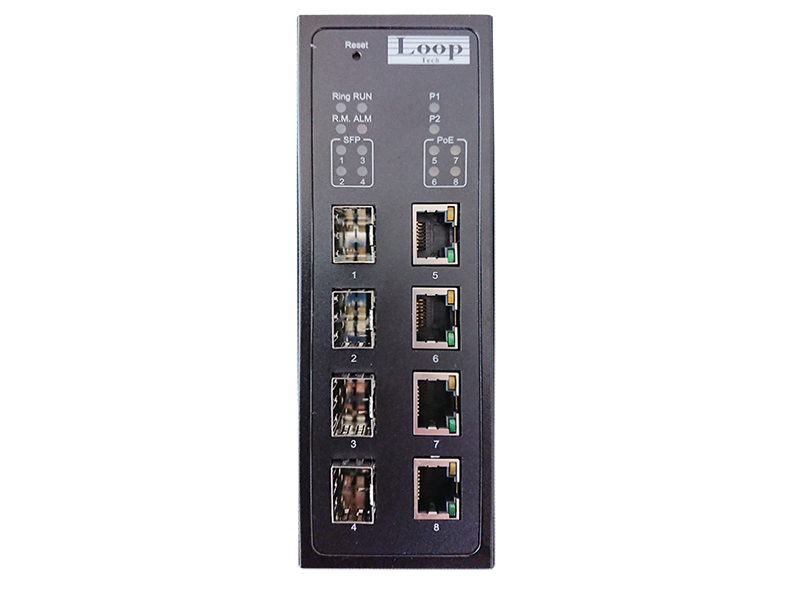

.png "6818-front")
- Mechanical and Electrical
- Operational between -20°C~70°C
- 54mm x 113mm x 145 mm
- 45-57 VDC for 802.3af mode
- 51-57 VDC for 802.3at mode
- Interfaces
- 4 10/100/1000BASE-T(X) auto negotiation speed
- 4 1000BASE-X SFP slot
- 2 relay outputs with current carrying capacity of 1A @ 24 VDC
- Ethernet
- Standards
- IEEE 802.3af / 802.3at for Power-over-Ethernet
- IEEE 802.3 for 10BASE-T
- IEEE 802.3u for 100BASE-T(X)
- IEEE 802.3ab for 1000BASE-T
- IEEE 802.3z for 1000BASE-X
- IEEE 802.3x for Flow Control
- IEEE 802.1d-2004 for Spanning Tree Protocol
- IEEE 802.1w for Rapid Spanning Tree Protocol
- IEEE 802.1s for Multiple Spanning Tree Protocol
- IEEE 802.1q for VLAN Tagging
- IEEE 802.1p for Class of Service
- IEEE 8021x for Authentication
- IEEE 802.3ad for Port Trunk with LACP
- IEEE 802.3az for Energy Efficient Ethernet
- Protocols
- IPv4, IPv6
- IGMPv1/v2/v3, IGMP Snooping
- GARP,GMRP, GVRP
- SNMPv1/v2c/v3, SNMP Inform
- Layer-3 Protocols
- Routing: IPv4 Unicast static routing, RIP v1/v2, OSPFv2
- Multicast: IGMPv1/v2/v3, , PIM-DM, PIM-SM
- Routing Redundancy: VRRP (Virtual Router Redundancy Protocol)
- Flow Control
- Back pressure and pause frame-based flow control schemes
- SNMP MIB
- MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC
- RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674
