Description

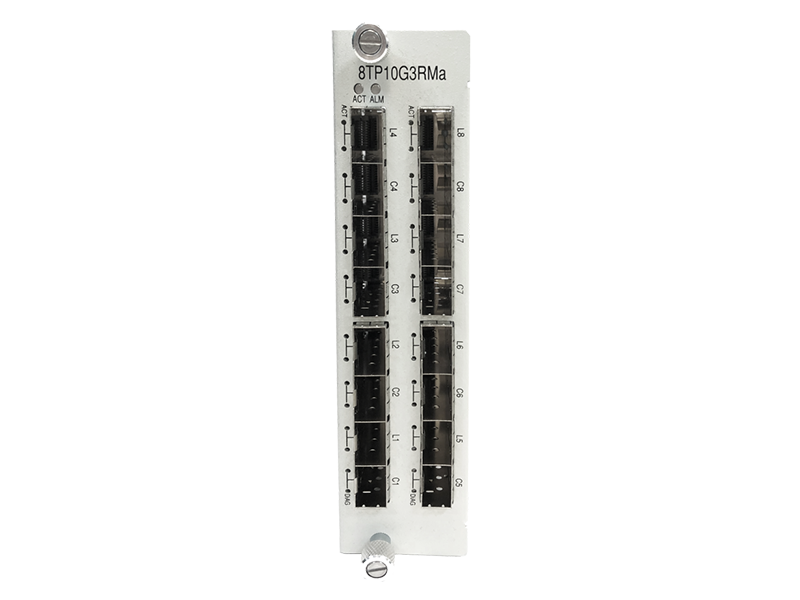

The transponder for Loop-WDM1800 is designed to support up to 10G Ethernet. The signal type and bit rate of the client interface are multi-rate. It provides up to eight users channels. The transponder is apply to CWDM and DWDM networks. The implemented 3R optical generation (re-amplification, re-shaping, re-timing) is use for signal processing.
In optical communication like relay amplification, signal regeneration, optical signal wavelength conversion, and single-mode conversion, the trasponder card is extensively used in this field. Applied with Loop-WDM1800, the transponder card supports local control and diagnostics by using a VT-100 terminal connected to the console port, and Ethernet and SFP ports for Web, Telnet, SSH, and SNMP v1/v3 management as well.
- Up to 8 user channels
- Data rate: 1.25~10G
- Support 3R (re-timing, re-shaping, and re-amplifying) optical generation
- One user channel can be reserved for OSC

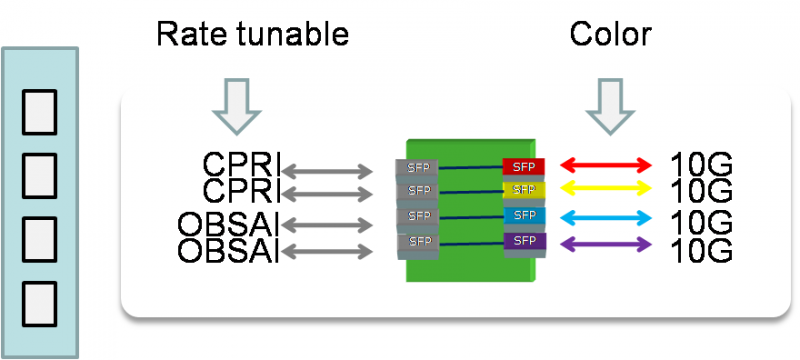

- Signal type and the bit rate of the client interface can be configured manually up to 10G
- Performance monitoring is available on each interface
Note: The color is not tunable. It needs to apply with different SFP modules.
