The four channel magneto (QMAGA) plug-in card is designed for mini slot on Loop-AM3440 series. This module allows communications between magneto telephones. With the card set in PLAR mode, communications can take place between a magneto telephone and a regular telephone. All signaling is carried transparently by the digitizing process.
- 4 telephone connections for Magneto
- Supports MRD (manual ring down)
- Supports Magneto to FXS speak PLAR function
- Supports dual type L1/L2 and L1/GND magneto phone or MRD
- Per port software programmable for ringing and ring detection on L1/L2 or L1/GND
- 16 Vrms minimum detectable ring
- Intended for use with 110-220 Vac (SAB) or ±48 Vdc (SD, SDA, SDB, SD125) powered main units

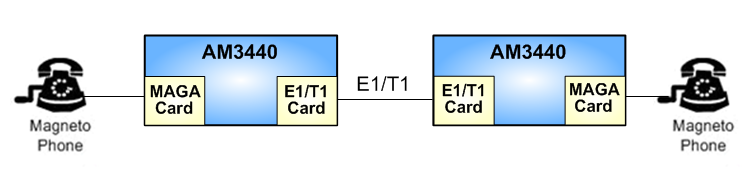

Standard Magneto Phone to Magneto Phone

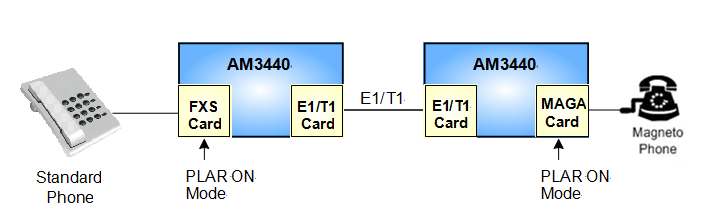

Telephone to Hand-Cranked Magneto Phone (PLAR ON)
.png)

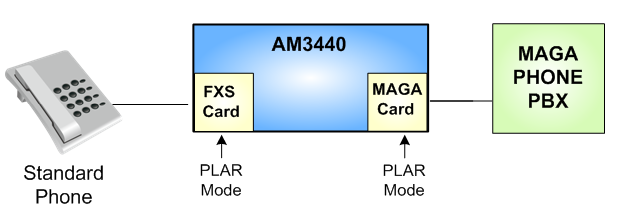

As Telephone Converter
