Description
The Erbium-Doped Fiber Amplifier (EDFA) for Loop-WDM1800 is an optical amplifier with the wavelength range from 1529 to 1564 nm, and it is covered with whole C-band. The EDFA module is designed to meet the need from the dynamic networks nowadays.
Applied with Loop-WDM1800, the EDFA module is capable to support local control and diagnostics by using a VT-100 terminal connected to the console port, and Ethernet and SFP ports for Web, Telnet, SSH, and SNMP v1/v3 management as well. The complete EDFA is designed to provide the solution for various amplification requirements, such as single-channel, and DWDM transmission in public transportation or long-haul network.
- High flatness: Typical 1.5dB
- Cover whole C-band
- Adjustable gain
- High saturation output power
- High Precise AGC Circuit
- Compact mechanical and circuit structure
- Available with OEM
- Compatible with Bellcore GR-1312-Core standard
- Application: Pre-amplifier, booster, and DWDM transmission system

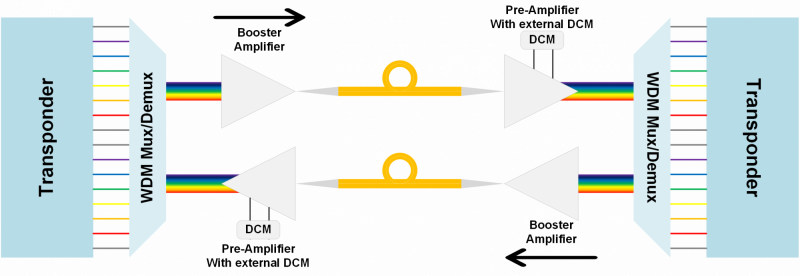

Booster Amplifer and Pre-Amplifer* EDFA
Booster Amplifier and Pre-Amplifier EDFA: Depending on the link budge (i.e. optical transceiver type, fiber type, reach distance and etc), none, one or both of these amplifiers may be required. External Dispersion Compensation Module (DCM) may or may not be required as well.
*Future Option
