12-Magneto Voice Card

The twelve channel magneto (12Magneto) plug-in card is designed for the single slot on Loop-AM3440 series. This module allows communications between magneto telephones. With the card set in PLAR ON mode, communications can take place between a magneto telephone and a regular telephone. All signaling is carried transparently by the digitizing process.

12 telephone connections for Magneto
Supports MRD (manual ring down)
Supports Magneto to FXS speak PLAR function
Supports dual type L1/L2 and L1/GND magneto phone or MRD
Per port software programmable for ringing and ring detection on L1/L2 or L1/GND
16 Vrms minimum detectable ring
Intended for use with 110-220 Vac (SAB) or ±48 Vdc (SD, SDA, SDB, SD125) powered main units

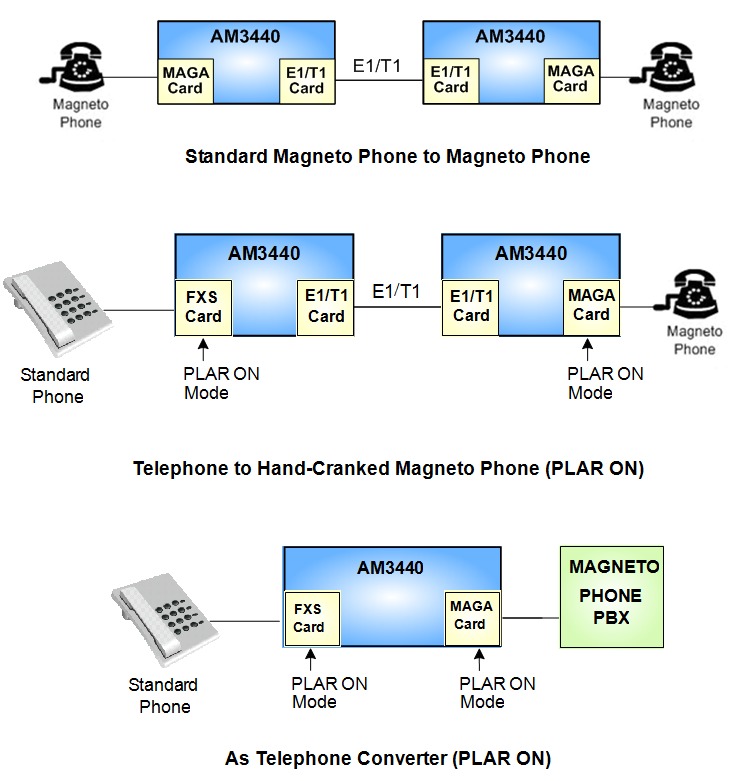

12-Magneto Application Illustrations
