Description

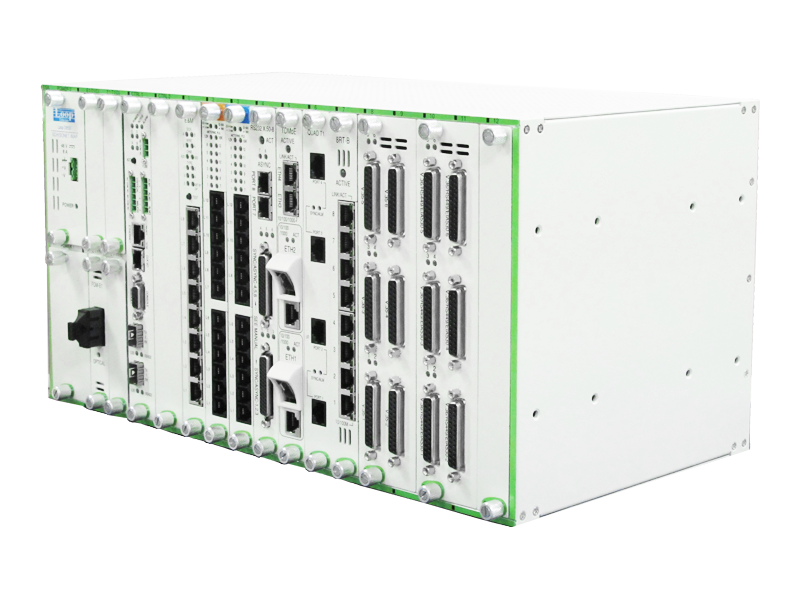

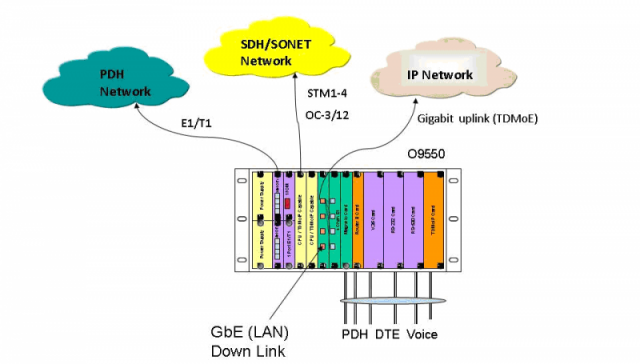

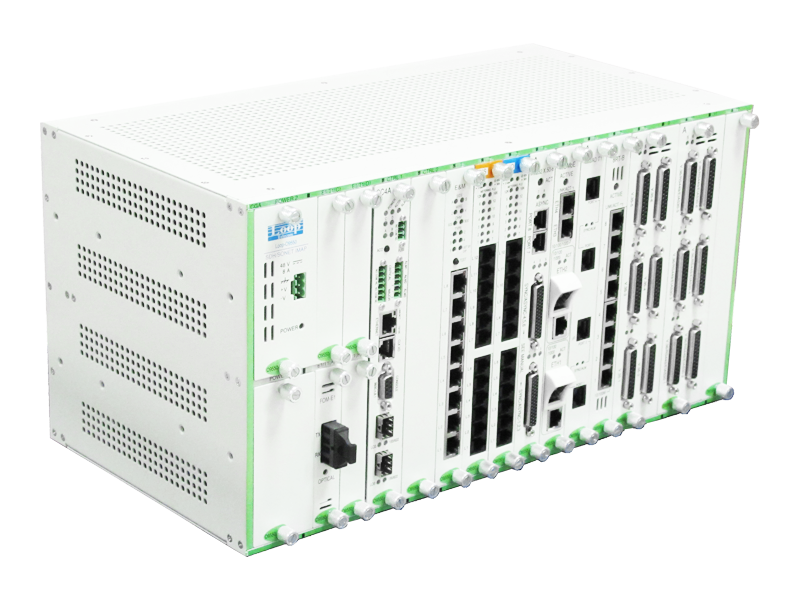

The Loop-O9550 SDH/SONET IMAP (Integrated Multi-Service Access Platform) is an economical STM-1/4 (OC-3/12) access multiplexer. It is designed to combine digital access interfaces, including TDM, IP, and voice interfaces into STM-1/4 (OC-3/12) optical lines for convenient transport and switching.

This unit is a full cross-connect; one or more of the WAN ports can be used as a Drop & Insert function with fractional E1/T1 lines, which can be muxed into a full E1/T1 line.

The O9550 provides two optical line signals at STM-1 (OC-3) or STM-4 (OC-12) with protection schemes including MSP (1+1) and SNCP protection in both ring and linear network topologies.

Redundancy is available in dual CPU controllers and power supply options, making the O9550 an excellent fit for critical applications. The chassis does not need or contain fan cooling, though an external fan tray is available.

The O9550 supports local control and diagnostics by using by using a VT-100 terminal connected to the console port. The O9550 also supports Ethernet, Telnet, SSH and SNMP so that it can also be controlled and diagnosed from remote locations. An in-band management channel with GUI is available. LED indicators for all plug-in cards are also available.

Full front access (ETSI) shelf
ADM, TM, and cross-connect
Per chassis single STM-1/4 (OC-3/12) optical ring uplinks
- Up to four STM-1/4 (OC-3/12) aggregate lines that are software configurable
- Non-blocking N x 64 Kbps for 252 E1 or 336 T1 for data and voice channel transmission for uplink site

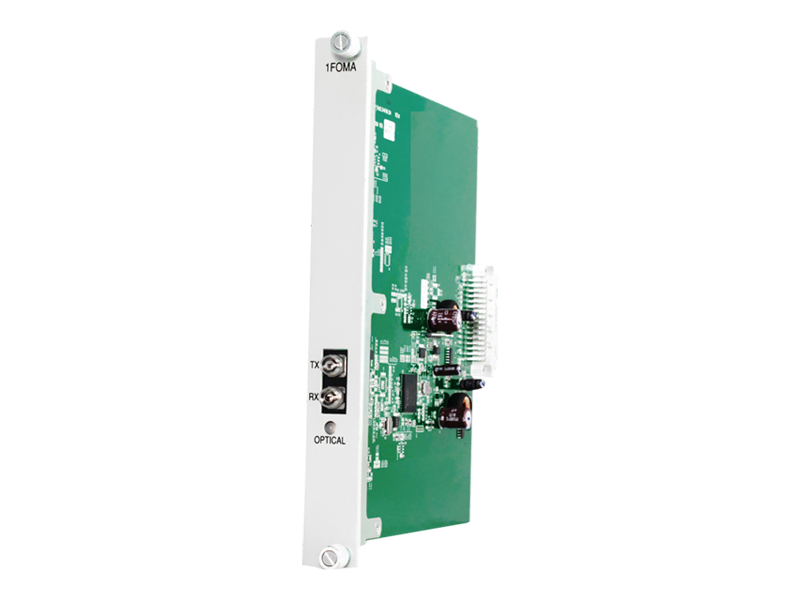

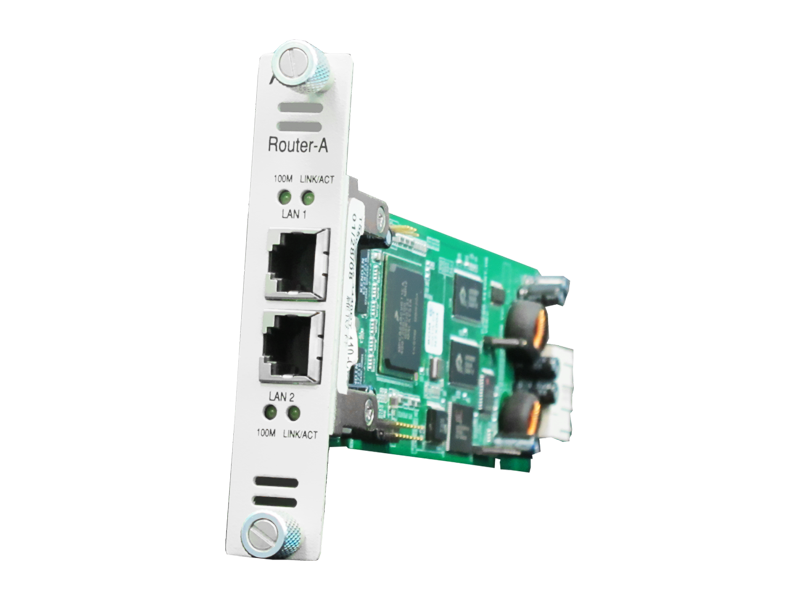

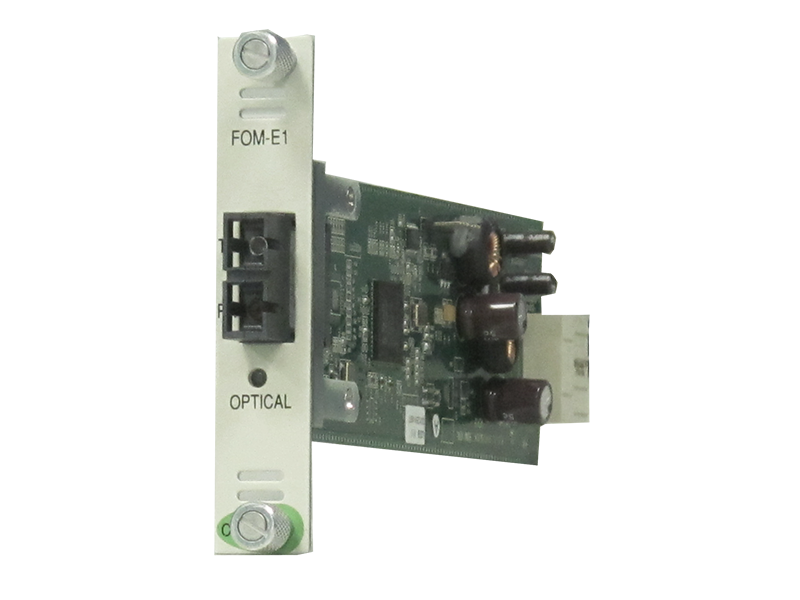

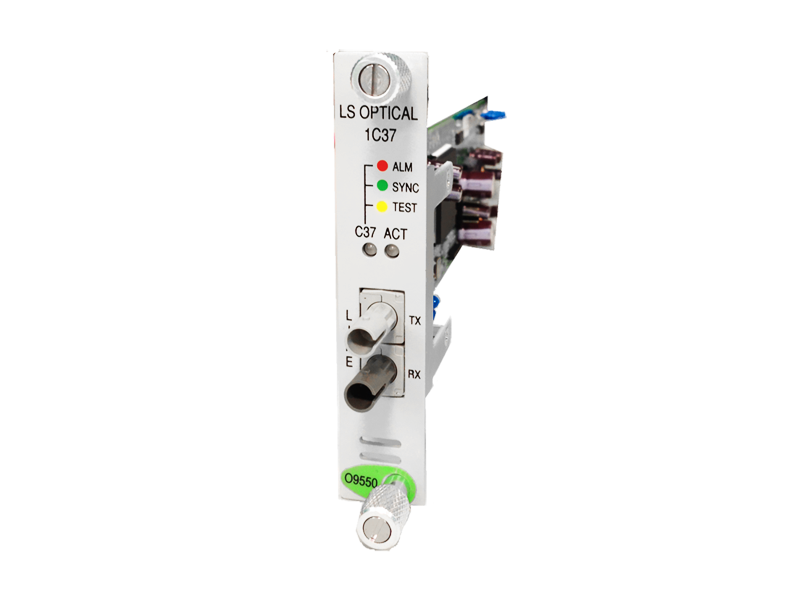

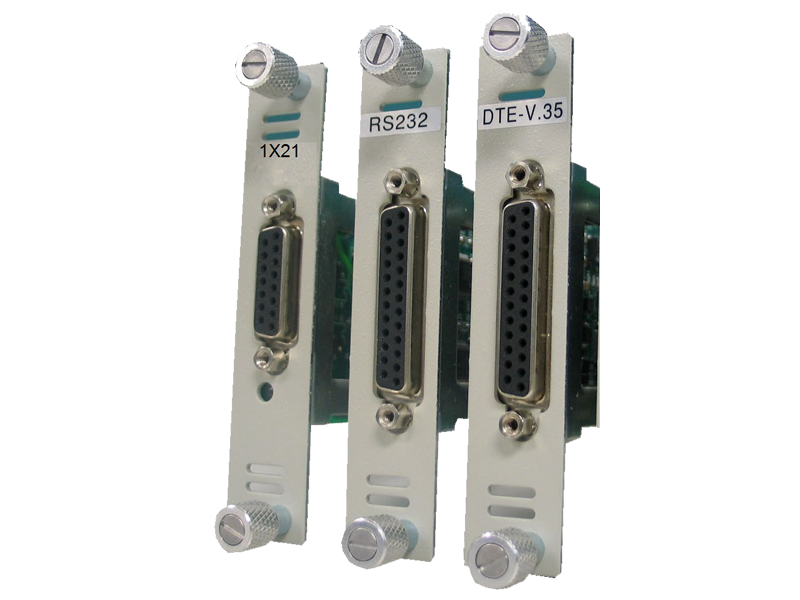

Tributary modules (see next page)
Power Modules:
- DC Module: (-48Vdc, -24Vdc, -125Vdc)
- AC Module: AC(100V~240V) for CGC only
- Dual Power: (1+1) Protection for DC only
SSM and CLK hold over function (SDH/SONET and E1/T1)
Controller protection:
- MSP (1+1) or SNCP for single controllers
- MSP (1+1) and SNCP for dual controllers
E1/T1/FOM support 1+1 and 1:1 Line protection
A-law to µ-law conversion
Alarm in/out, clock in/out
Support E1/T1/FOM ring structure
Support E1 DS0 SNCP ring
Compatible to a SNMP based GUI network management system and supported by LoopView and Loop iNMS
SSH V2
SNMP V1 and V3
RoHS compliant
