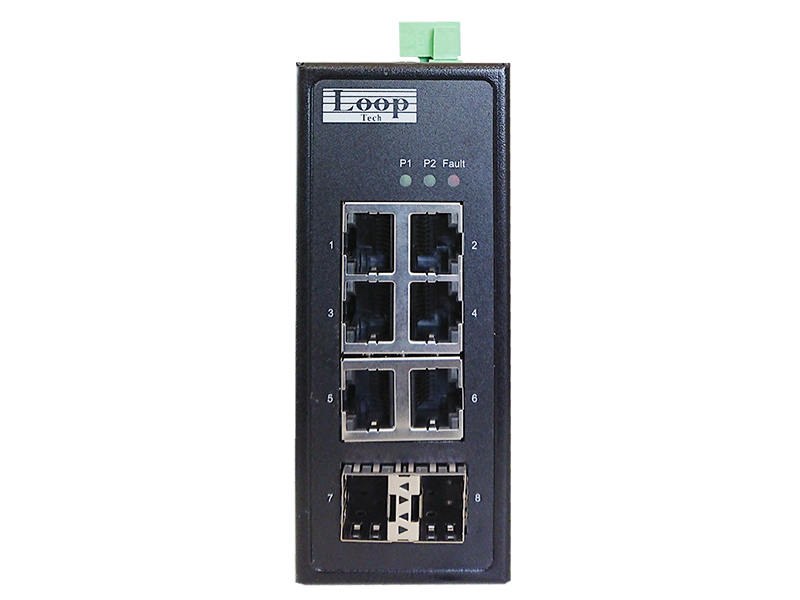

DIN‐Rail industrial Switches: Unmanaged 8-Port Industrial Secure Gigabit Switch - IP6808

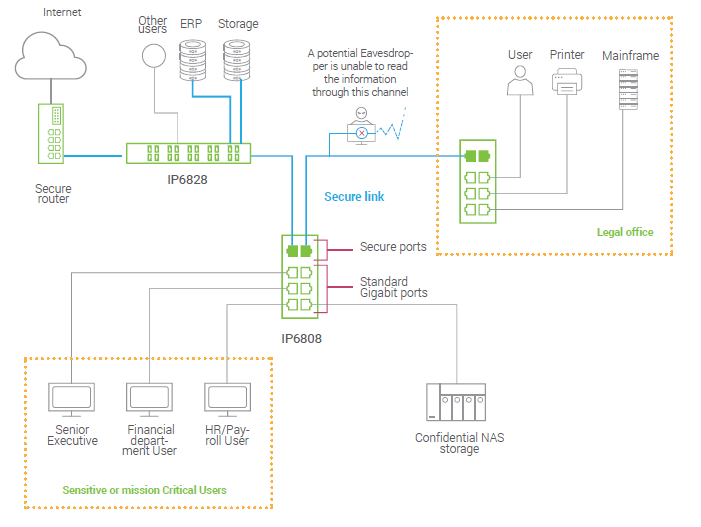

Loop-IP6808 Smart Secure Gigabit Switch secures the information flowing through your Local Area Network. IP6808 uses MACsec technology to encrypt all data flowing from the secure ports to any other MACsec-capable device. This will protect your network also from Insider’s Threats, such as information gathering through wiretapping, or unintentional commands sent by impersonation.

• Mechanical and Electrical
  • 9~48 VDC, dual power input
  • Opterating Temperature: -20°C to 70°C  (-4°F to 158°F)
• System capacity
  • 6 x 10/100/1000 BASE-T(X) RJ45 ports
  • Additional 2x 10/100/1000M BASE-T(X) RJ45 ports or 2x1000 BASE-X SFP slots supporting MACsec encryption.
• Carrier Ethernet
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ab for 1000BaseT IEEE 802.3z for 1000Base-X
  • IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.3az for Energy Efficient Ethernet
  • IEEE 802.1q for VLAN tagging (Prioritization of Profinet Packets) IEEE 802.1p for CoS (Prioritization of Profinet Packets)
  • IEEE 802.1ae for MACsec
